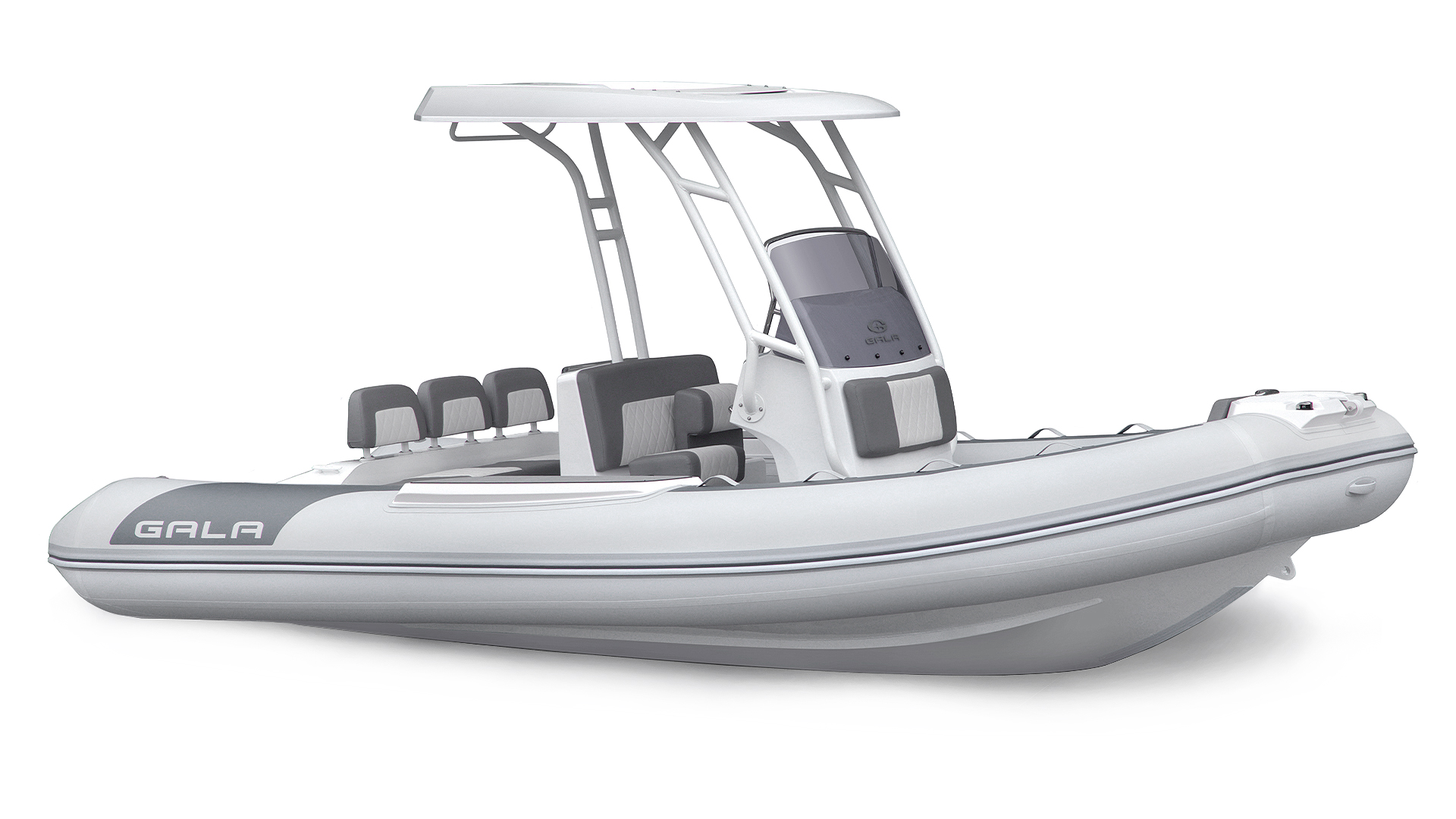

VIKING – V580
V580
19’0″ long, 150HP max
VIKING V580 is built for heavy seas and high waves. Cockpit space, performance and great features make these models unbeatable in its class.
Truly self-bailing cockpit makes this boat one of the most practical, maintenance-free and safe vessels in its class.
This model is 5.8m long (19’) and has two versions:

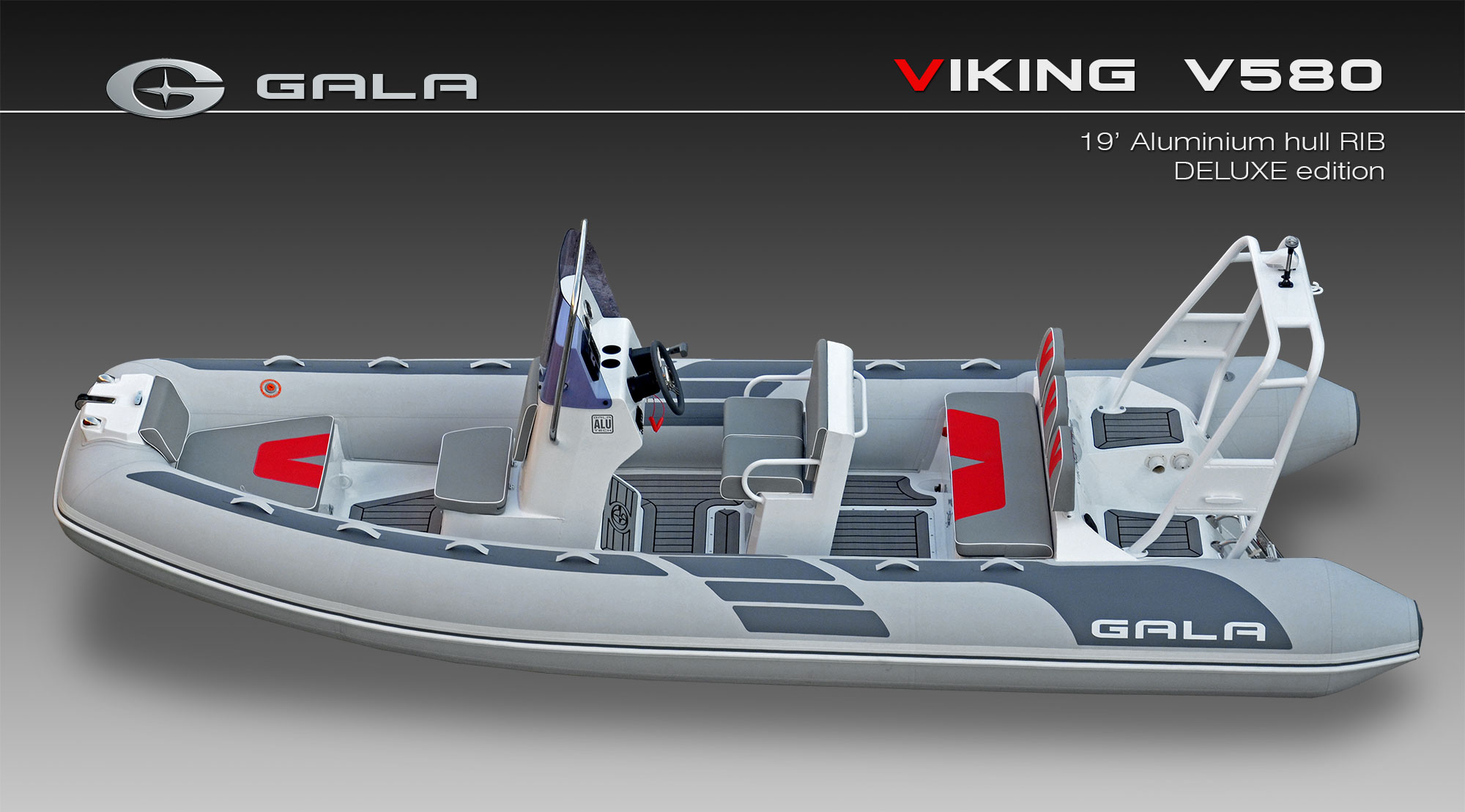

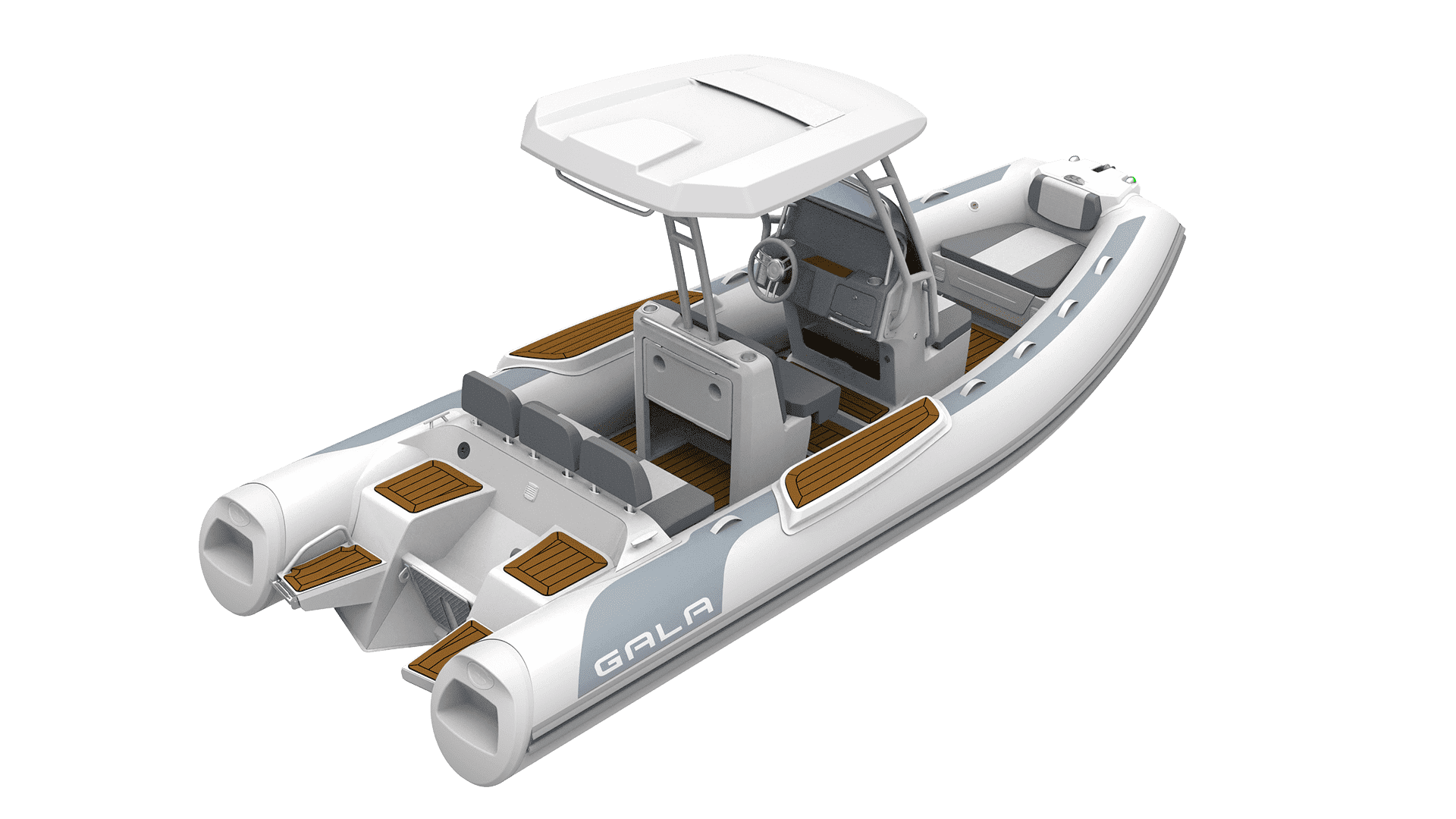

• V580 – DELUXE version: boat with C-12 console with front seat, S-16 driver seat and large rear seat with 3 back supports, all built for comfortable recreational boating
• V580F – FISHING/PRO version: boat with C-07 console, S-06 bolster seat, a lot of free space at the front and at the back, with a number of options for expert level fishing and professional use.
You will enjoy well laid out cockpits and capacities of these great models, along with superior rigidity of GALA-ALU-TECH welded aluminium hulls!
5 reasons to choose GALA
“DEEP-V” ALU HULL
Aluminum welded Deep-V double stepped hull of V580 makes it a real performer with exceptional seaworthiness.
GALA TRANSOM EXTENSIONS

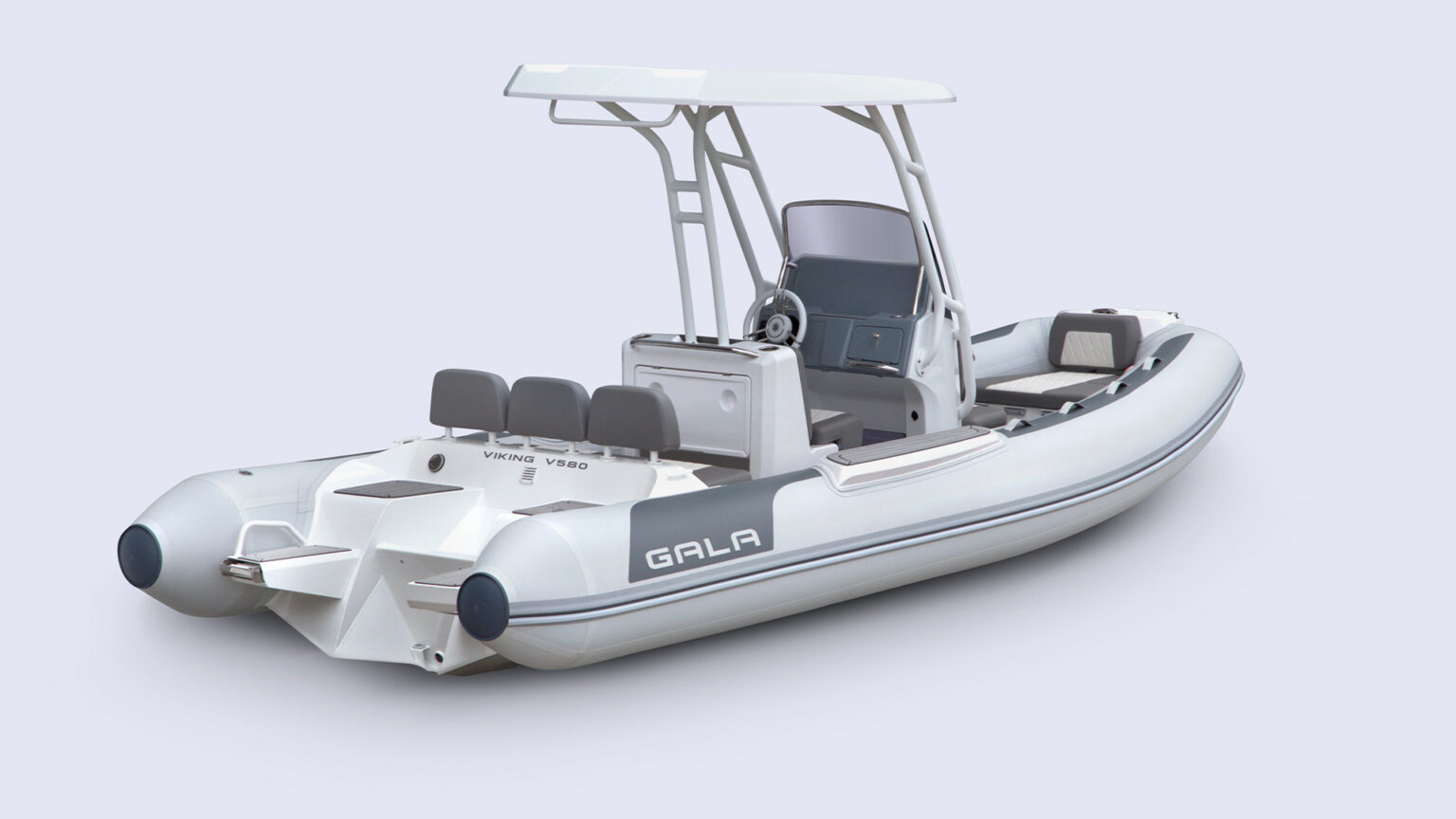

V580 rear part configuration with transom extensions is a great feature for easy and quick getting on plane and spray protection.

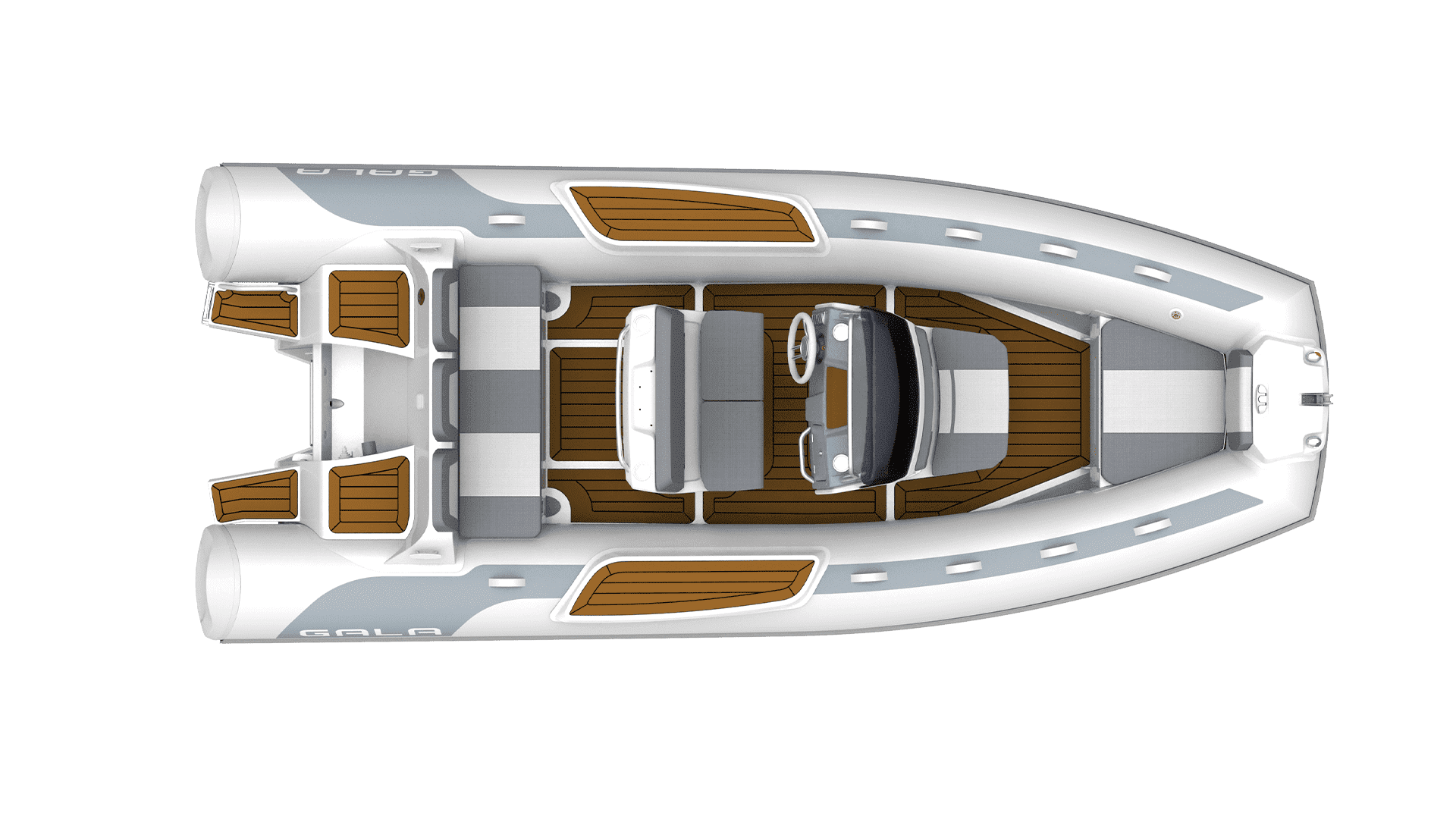

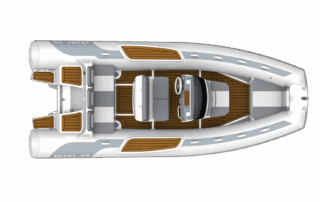

TWO SIDE WALKWAYS
The boat is wide enough to provide walkways on each side of the boat for safety and comfort for everyone on board.
HIGH-PROFILE CONSOLE

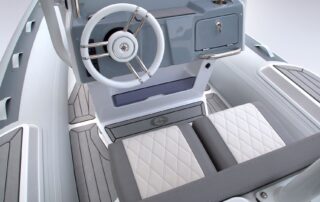

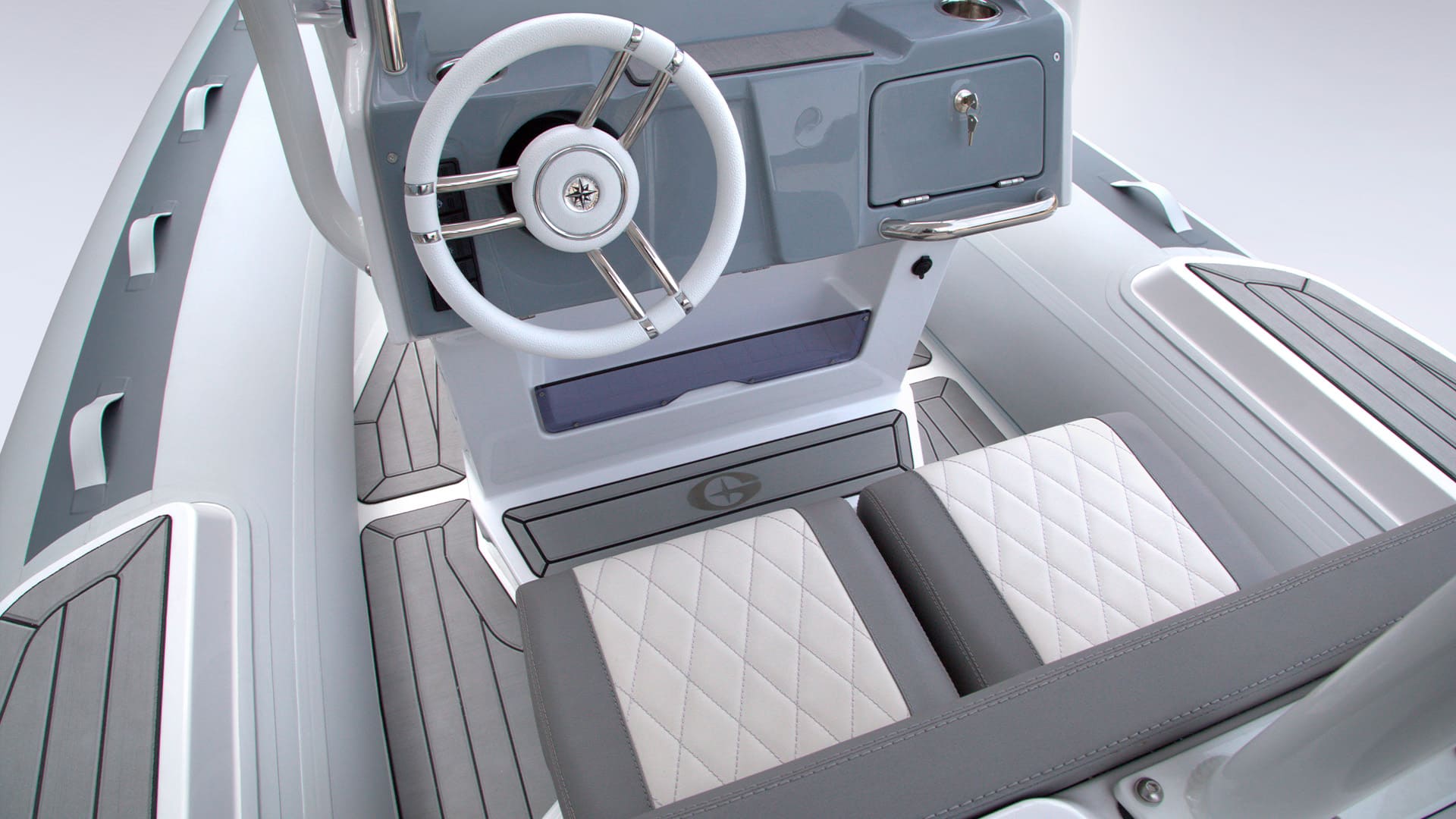

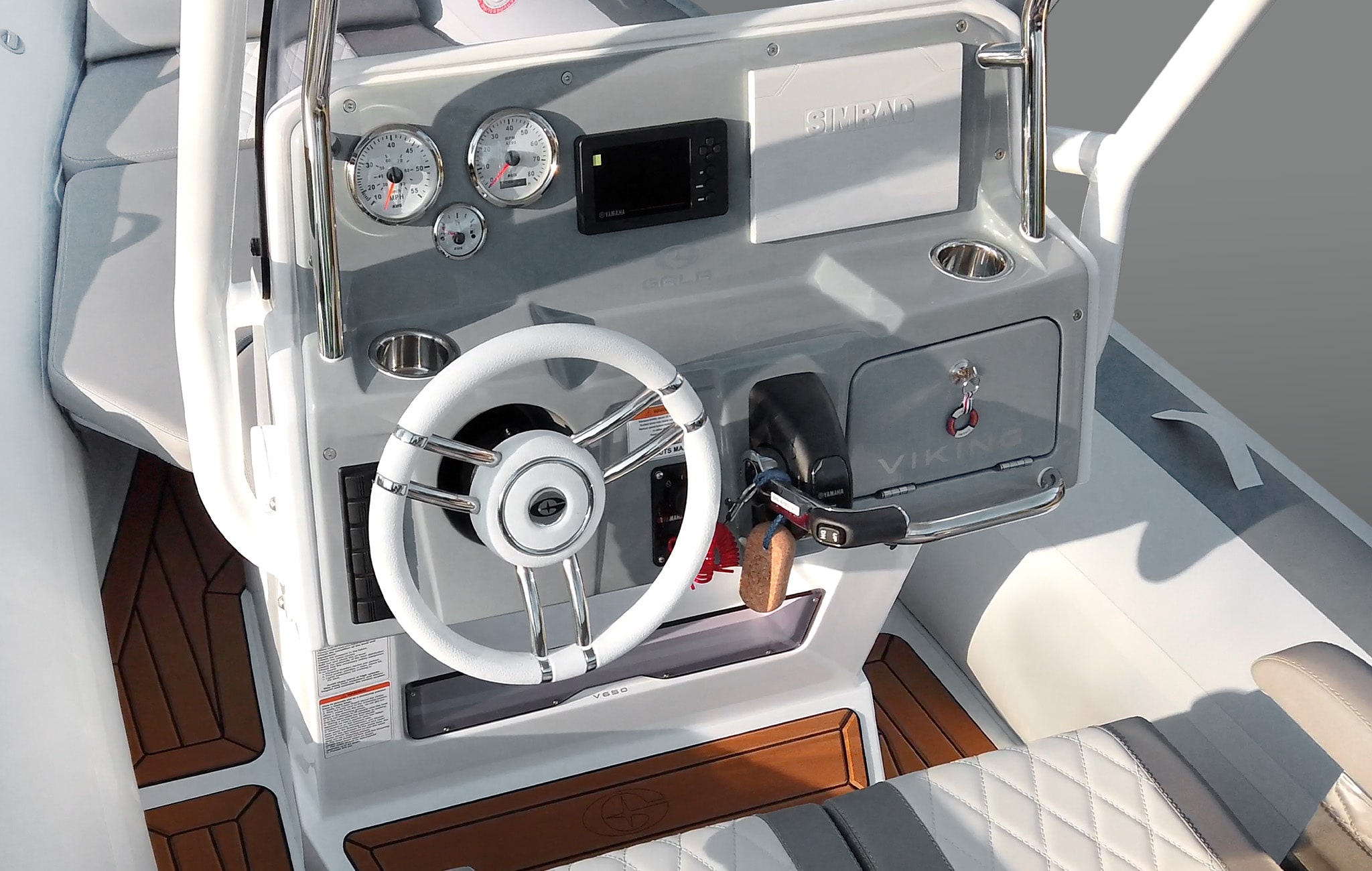

Aluminum welded high-profile console with two level dashboard and deck step is ergonomic and protective.
SELF-BAILING COCKPIT
The boat cockpit is truly SELF-BAILING, so all the water drains out without any bilge pump needed.
VIDEO
GALLERY
Features
STANDARD FEATURES:
- Deep-V, powder-coated aluminum hull with SELF-BAILING cockpit, doubled drains, transom extensions, motor well, bow locker, keel guard
- ENVIROX chromate-free titanium hull protection
- 4 lifting eyes, 2 rear and 1 bow tow eyes
- Soft curved 5-chamber Valmex or Hypalon buoyancy tube with overpressure valve, 12 handles and rubbing strake with splash guard
- Two paddles, high-efficiency foot pump
- Repair kit and manual

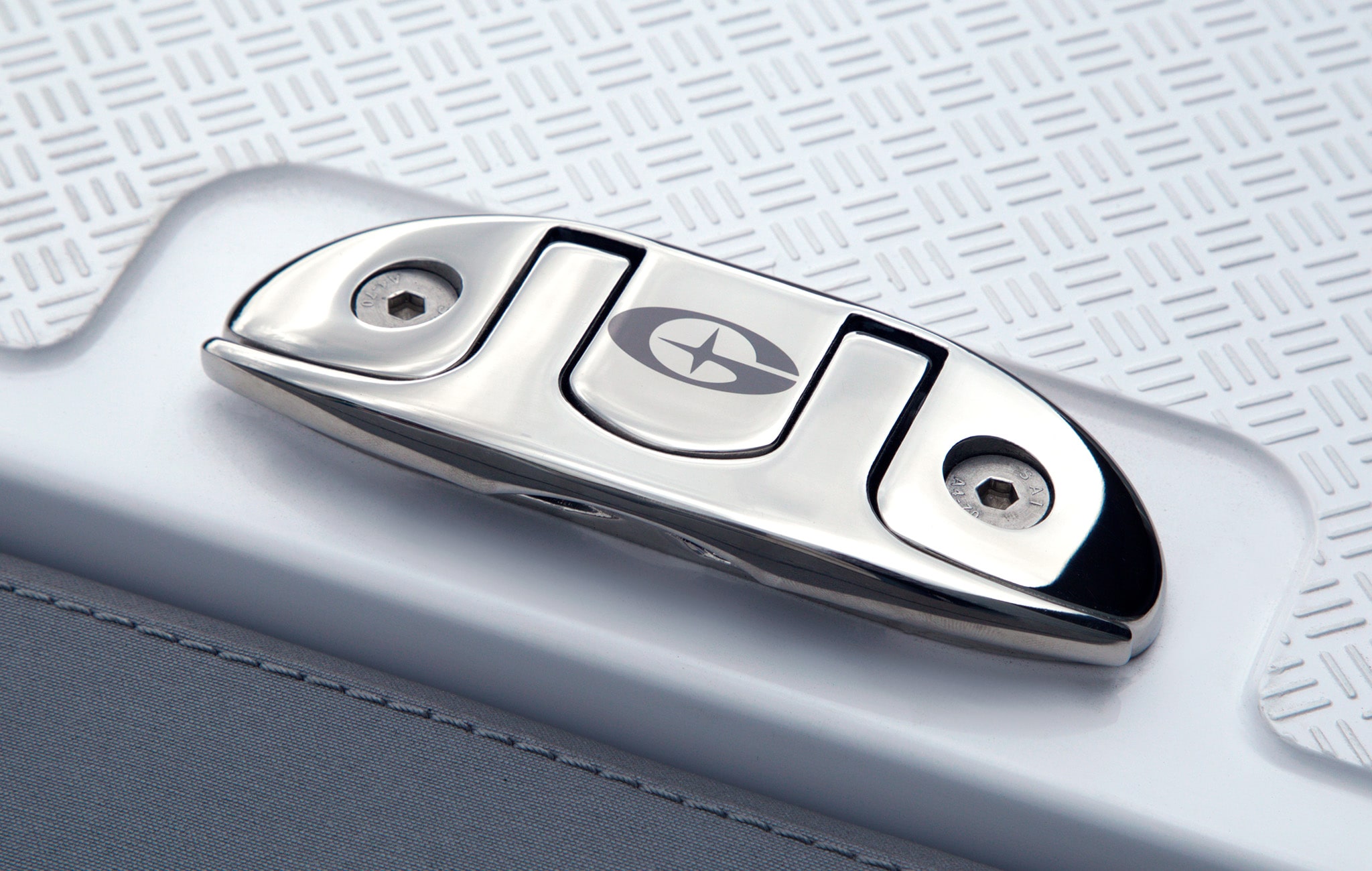

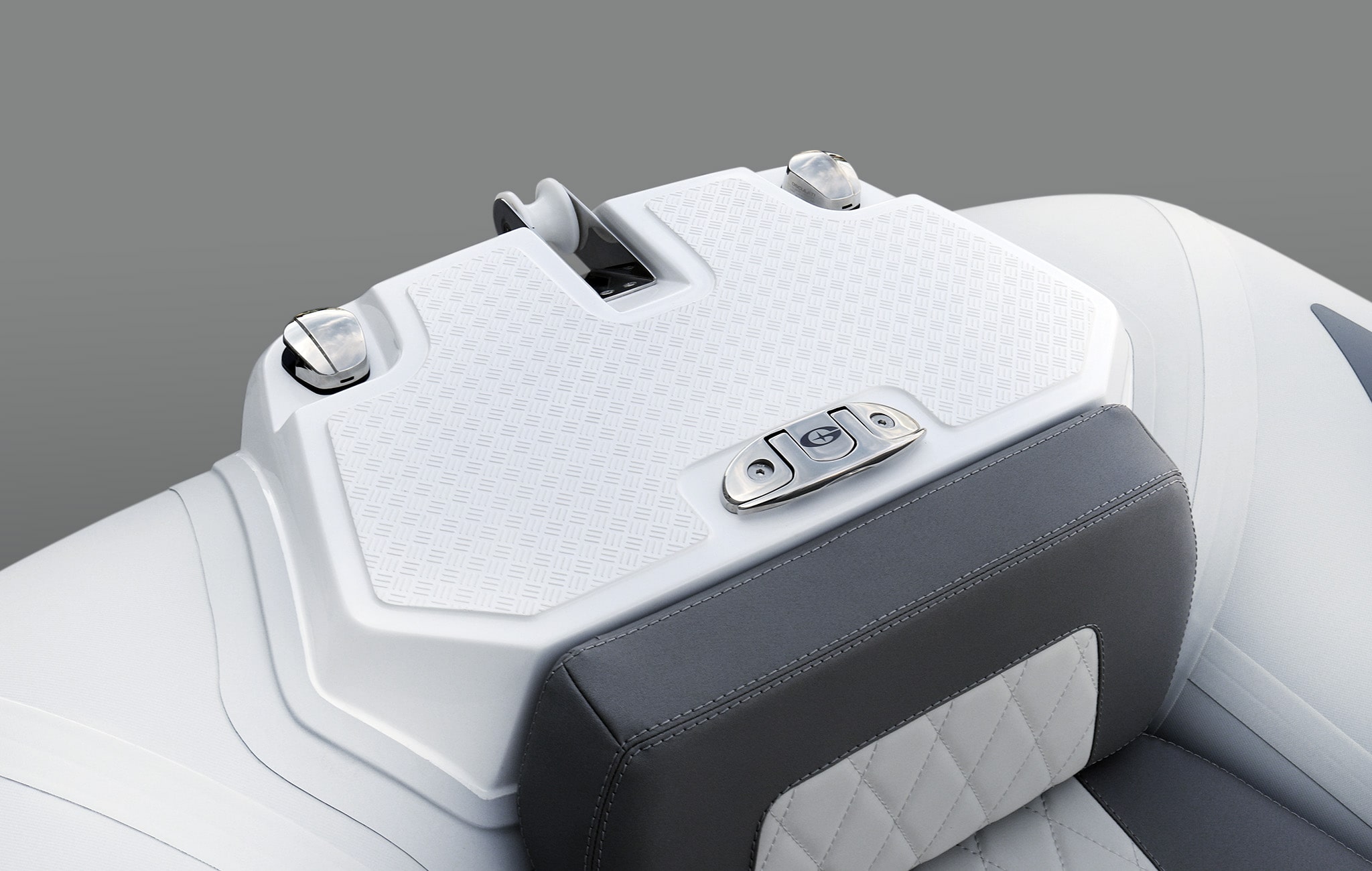

- Bow step plate with cleat, roller and soft seat back

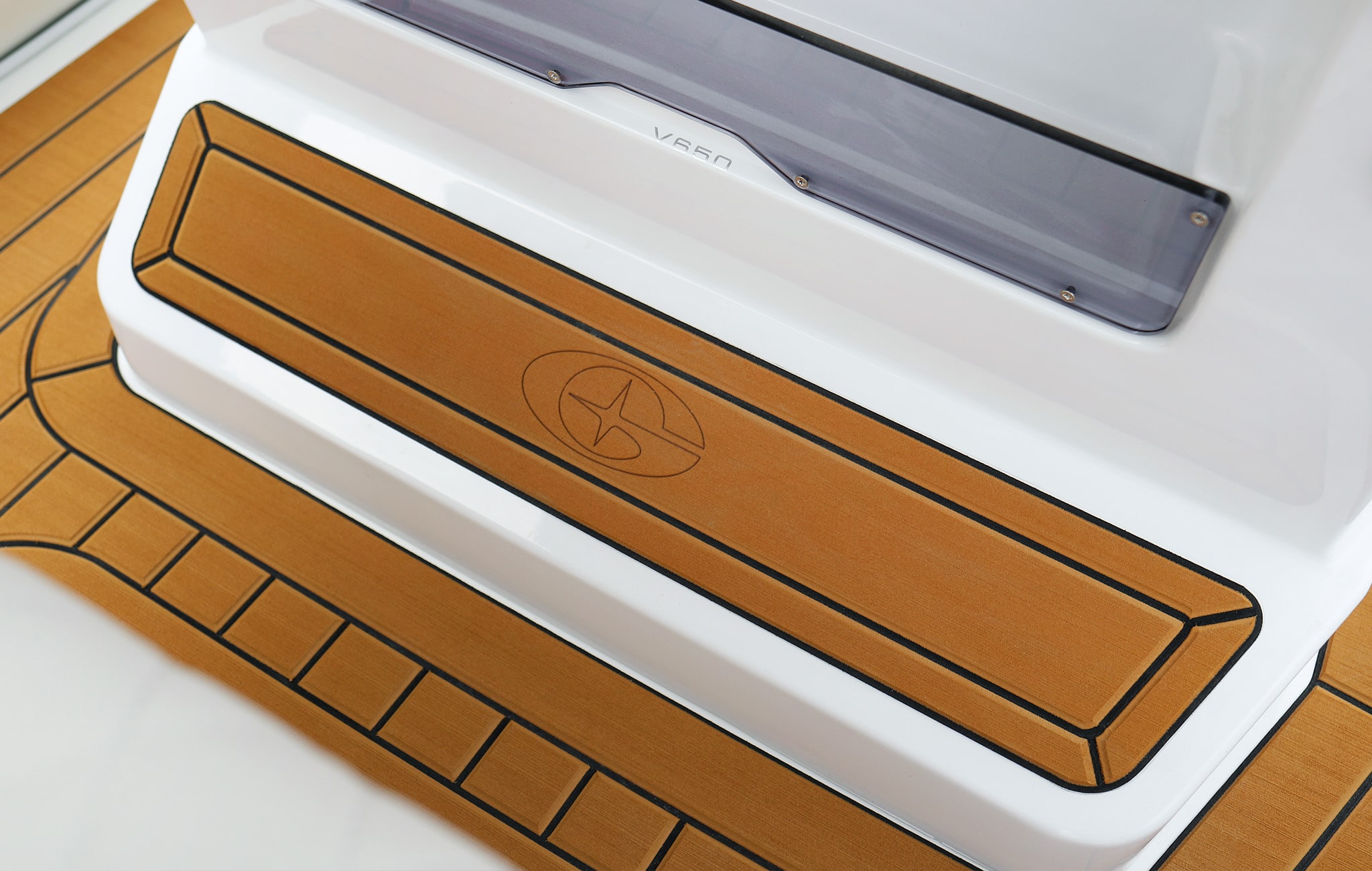

- SEADECK decking upgrade
- SILVERTEX upholstery
- Fuel system with 106L tank and sender
- Electric equipment package
- Steering console C-12 with front seat
- Driver seat S-16 with 2 folding seats
- Rear locker with with seat and back pads
- Bow cushion
OPTIONAL EQUIPMENT:
- Two side step panels with handles
- SEADECK Upgrade for 2 side step panels
- Fiberglass tube ends
- Tube protector package
- Steering wheel GALA Deluxe
- Hydraulic steering system

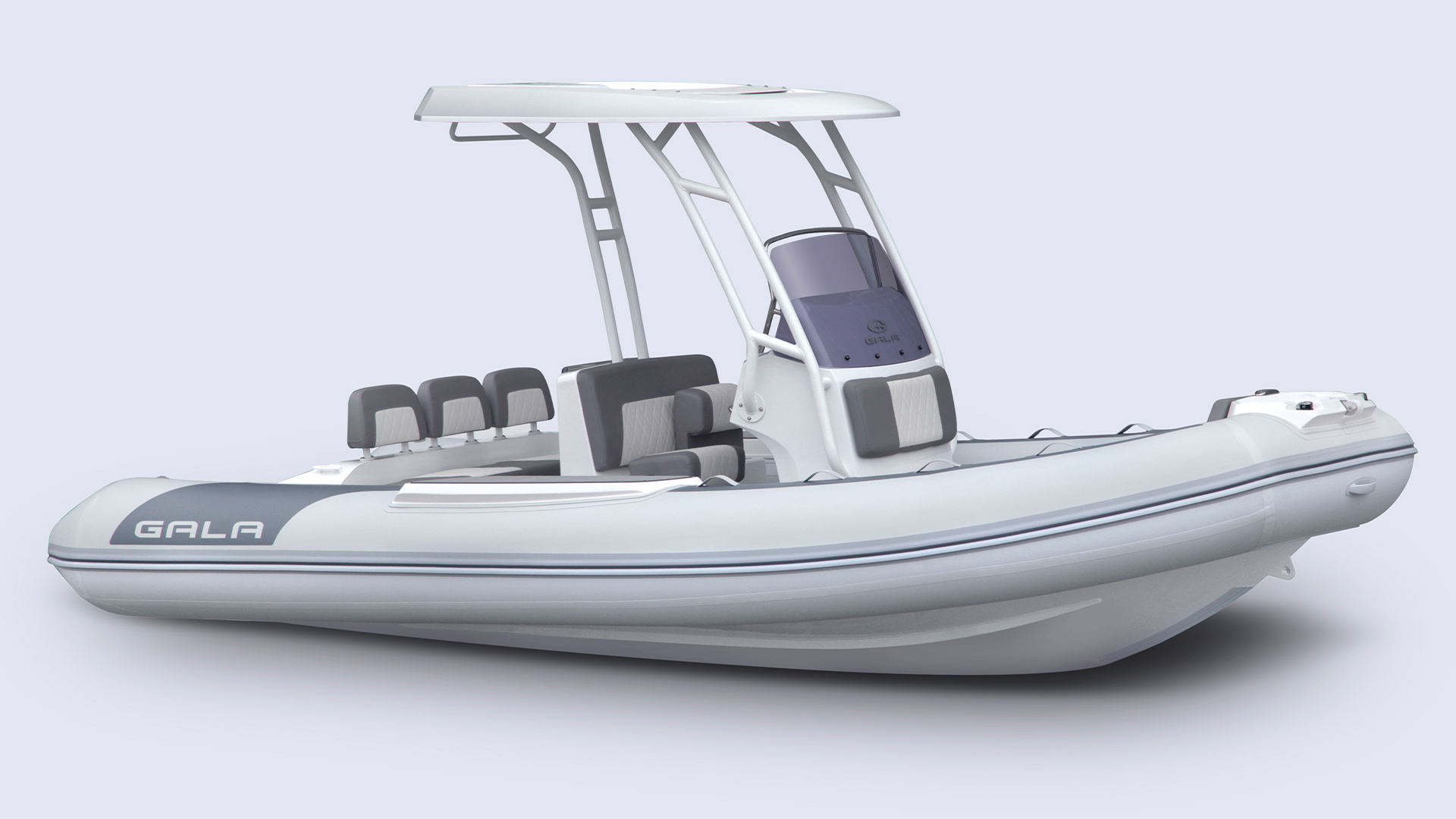

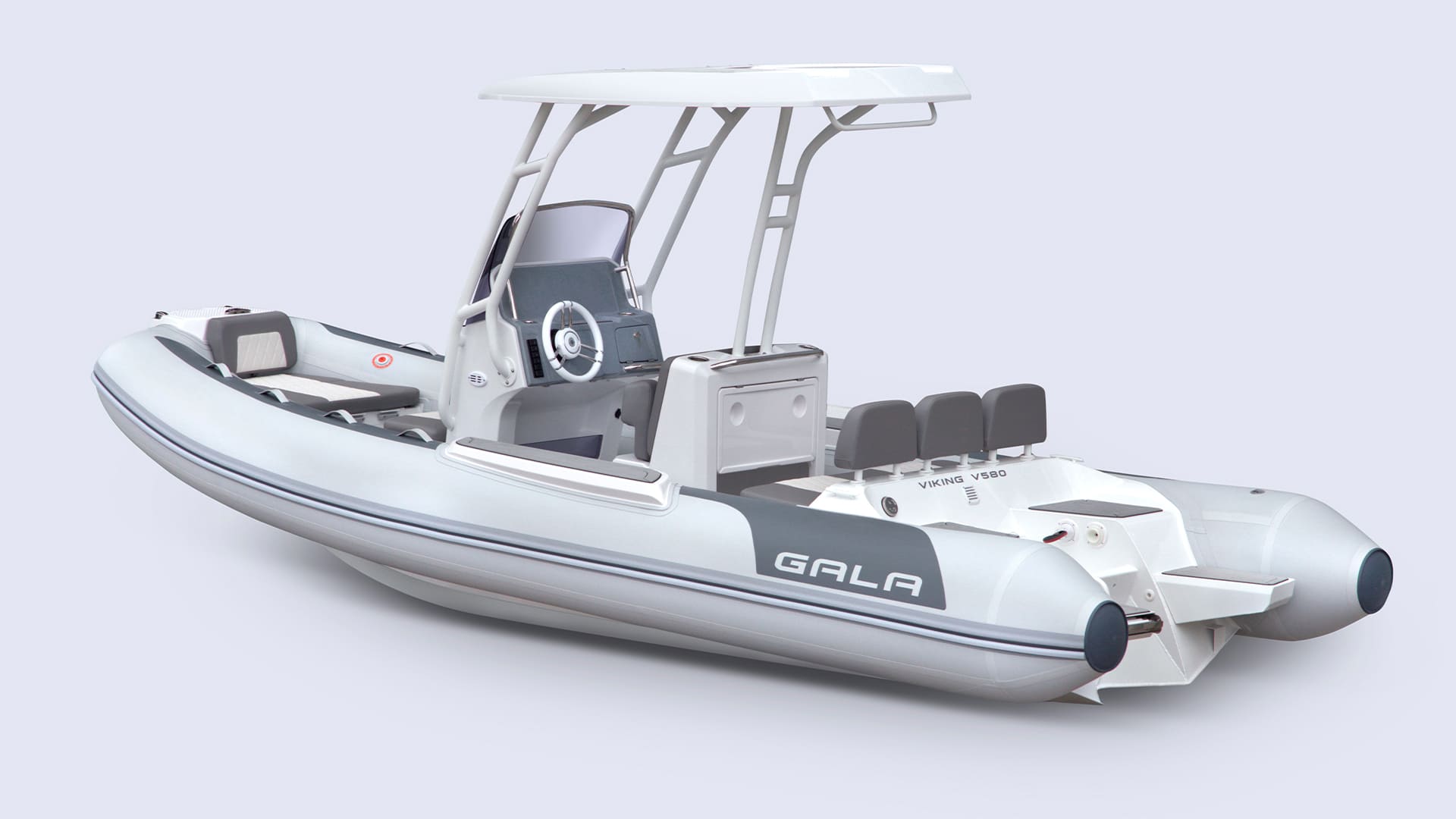

- Towing arch with 2 cleats

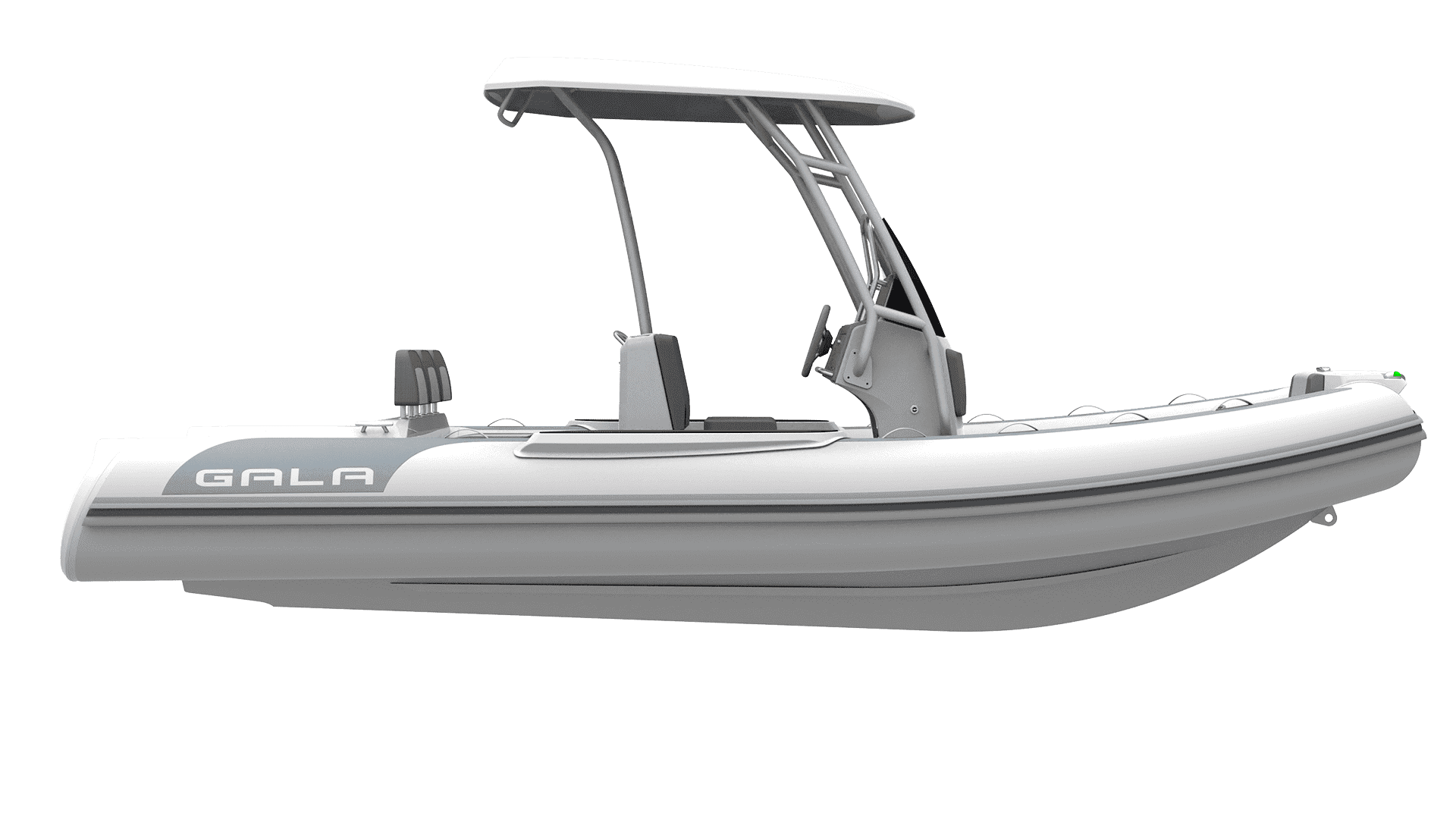

- Fiberglass hard top
- Overall cover
- Steering console & seat covers
- Folding ladder
- 2 transom platforms with ladder
- Removeable bow sundeck
- Wash down system with high pressure pump
- Optional fishing equipment (talk to you dealer about additional fishing equipment).
Recommended hydraulic steering system : “NAUTECH-1” made by ULTRAFLEX, Italy.
Specifications
|
Models |
V580 |
|---|---|
| Length overall | 580 cm / 19’0″ |
| Length inside | 470 cm / 15’5″ |
| Width overall | 250 cm / 8’2″ |
| Width inside | 130 cm / 4’3″ |
| Tube Diameter | 60 cm / 24″ |
| Bare boat weight | 462 kg / 1016 lbs |
| Loading capacity | 1500 kg / 3300 lbs |
| Passenger capacity | 12 |
| Number of chambers | 5 |
| Engine recommended | 120 HP |
| Engine MAX | 150 HP |
| Engine weight MAX | 250 kg / 550 lbs |
| Engine shaft length | 20″ (long) |
| Aluminum hull thickness | 4 mm / 1/6″ |
| Boat design category | C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors
LIGHT GRAY / GRAY
Light gray tube
with gray decor.
White hull.
(Default color)
WHITE / GRAY
White tube
with gray decor.
White hull.
BLACK / GRAY
Black tube
with gray decor.
Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
