VIKING – V580F, V650F
V580F
19’0″ long, 150HP max
V650F
21’4″ long, 175HP max

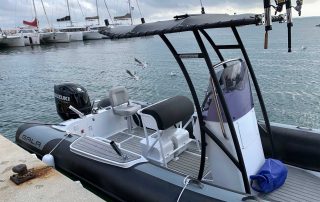

VIKING V580F & V650F, built for heavy seas and high waves. Cockpit space, performance and a great set of features make these models unbeatable in their class. This model range covers 5.8m long (19′) and 6.5m long (21’4’’). The FISHING/PRO VIKING line are equipped withthe C-07 console, S-06 bolster seat, a lot of free space at the front and at the back, with a number of options for expert level fishing and professional use. You will enjoy the well laid-out cockpits and capacities of these great models, along with superior rigidity of GALA-ALU-TECH welded aluminum hulls! Every boat is available with either VALMEX or HYPALON tubing in a variety of colors.
5 reasons to choose GALA
“DEEP-V” ALU HULL
Aluminum welded Deep-V double stepped hull of V650 makes it a real performer with exceptional seaworthiness.
“Z-FLAP” GALA TRANSOM
Innovative “Z-FLAP” transom deflector, created by GALA, is a great selling feature for back splash protection on V650.
TWO SIDE WALKWAYS
Each model is equipped with a sliding aluminium seat with additional seat available.
LARGE REAR COCKPIT AREA
Each GALA Atlantis-LITE is extremely low weight. It makes them an unbeatable choice if you need something lite!
SELF-BAILING COCKPIT
Each boat is equipped with the advanced Overpressure Valve for protection against overheating and over-inflating.
VIDEO
GALLERY
Features
STANDARD FEATURES:
- Deep-V, powder-coated aluminum hull with SELF-BAILING cockpit, doubled drains, transom extensions, motor well, bow locker, keel guard
- ENVIROX chromate-free titanium hull protection
- 4 lifting eyes, 2 rear and 1 bow tow eyes
- Soft curved 5-chamber Valmex of Hypalon buoyancy tube with overpressure valve, 12 handles and rubbing strake with splash guard
- SILVERTEX upholstery
- Bow step plate with back cushion
- Fuel system with 202 lit tank and sender
- Electric package
- SEADECK antiskid decking
- Two paddles, high-efficiency foot pump
- Repair kit and manual
- Steering console C-07 with front seat
- Bolster seat S-06 with 2 folding seats
- Rear locker with access, no rear seats
OPTIONAL EQUIPMENT:
- Two side step panels with handles
- SEADECK Upgrade for 2 side step panels
- Fiberglass tube ends
- Tube protector package
- Steering wheel GALA Deluxe
- Hydraulic steering system
- Towing arch with 2 cleats
- Hard top, fiberglass
- T-form rear towing mast
- Overall cover
- Steering console and seat covers
- Folding ladder
- 2 transom platform with ladder
- Removable GRP table with 4 cup holders
- High-pressure wash-down pump with nozzle
- Removable bow sundeck
- Fishing optional equipment – contact your Dealer for details.
Recommended hydraulic steering system: “NAUTECH-1” made by ULTRAFLEX, Italy.
Specifications
|
Models |
V580F |
V650F |
|---|---|---|
| Length overall | 580 cm / 19’0″ | 650 cm / 21’4″ |
| Length inside | 470 cm / 15’5″ | 540 cm / 17’9″ |
| Width overall | 250 cm / 8’2″ | 250 cm / 8’2″ |
| Width inside | 130 cm / 4’3″ | 130 cm / 4’3″ |
| Tube Diameter | 60 cm / 24″ | 60 cm / 24″ |
| Bare boat weight | 462 kg / 1016 lbs | 525 kg / 1155 lbs |
| Loading capacity | 1500 kg / 3300 lbs | 1800 kg / 3960 lbs |
| Passenger capacity | 12 | 14 |
| Number of chambers | 5 | 5 |
| Engine recommended | 120 HP | 150 HP |
| Engine MAX | 150 HP | 175 HP |
| Engine weight MAX | 250 kg / 550 lbs | 300 kg / 660 lbs |
| Engine shaft length | 20″(long) | 20″(long) |
| Aluminum hull thickness | 4 mm / 1/6″ | 4 mm / 1/6″ |
| Boat design category | C | C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors
LIGHT GRAY / GRAY
Light gray tube with gray decor. White hull. (Default color)
WHITE / GRAY
White tube with gray decor. White hull.
BLACK / GRAY
Black tube with gray decor. Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
